Buying guide

Return Pumps

Our pick

SICCE Syncra SDC 6.0

Choose the SICCE Syncra SDC 6.0 when you want adjustable return flow with an included controller and a choice of submerged or external installation. Check its flow curve against your plumbing and lift before ordering.1

Compare the alternatives

Why this one

  • Its 1,450 GPH maximum rating gives you room to adjust the output with the supplied controller. Choose by the flow needed at your actual lift, rather than the headline maximum alone.12
  • It supports submerged or external installation.1

The alternatives

Other contenders

  • AquaIllumination Axis 20

    Choose the Axis 20 for a return chamber that needs adjustable DC flow and wireless smart control. Its maximum rating is approximately 185 GPH; the body is 54 mm wide and 139.7 mm tall. Follow the prescribed return-chamber installation.3111213

  • AquaIllumination Axis 40

    Choose the Axis 40 when a return chamber needs its approximately 400 GPH maximum class with adjustable DC flow and wireless smart control. Check clearance for the 62 mm width and 168.2 mm height, and follow the return-chamber setup instructions.3121415

  • AquaIllumination Axis 90

    Choose the Axis 90 when a return chamber needs its approximately 925 GPH maximum class with adjustable DC flow and wireless smart control. Allow for its 74 mm width and 196.85 mm height, and follow the prescribed return-chamber installation.3121617

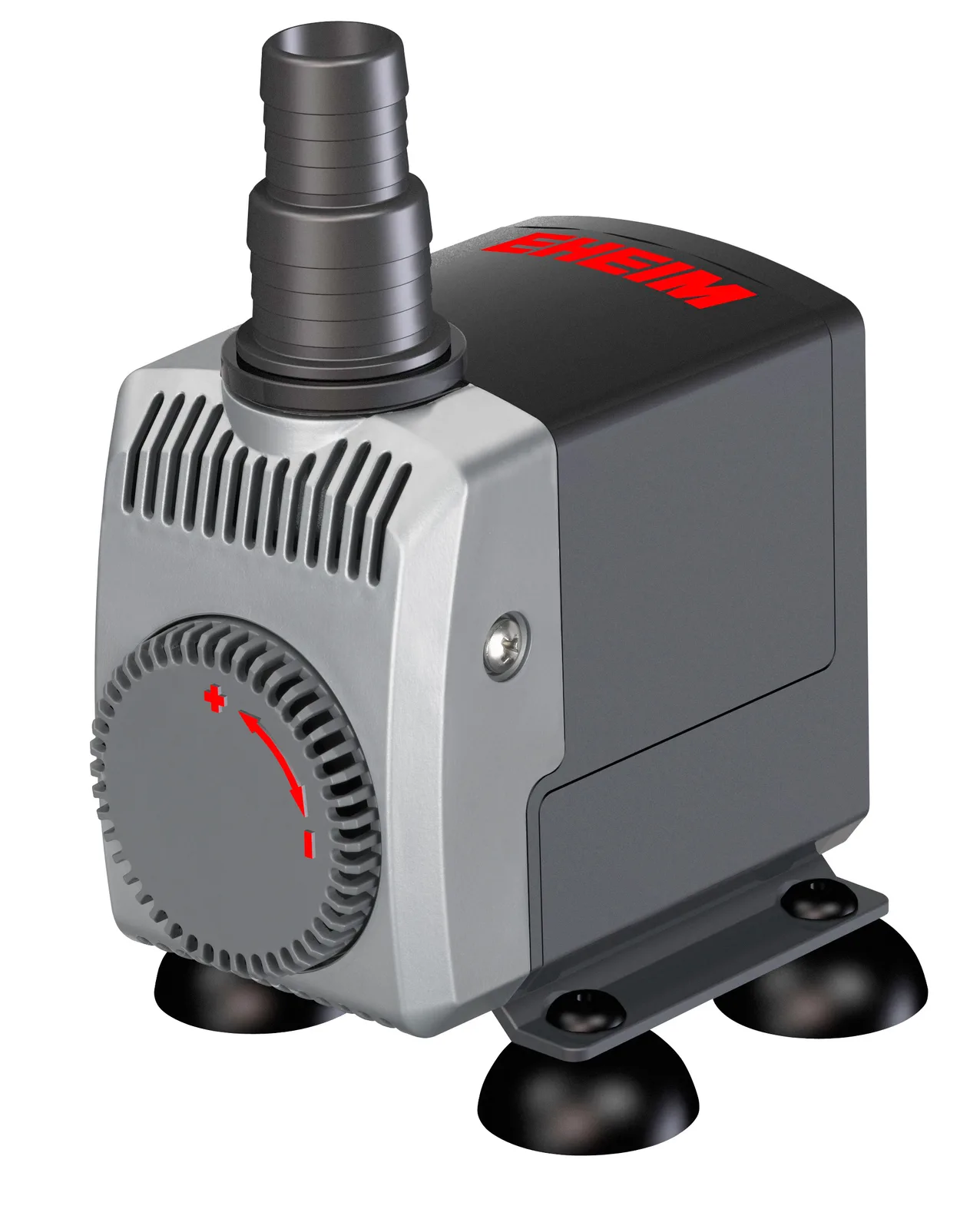

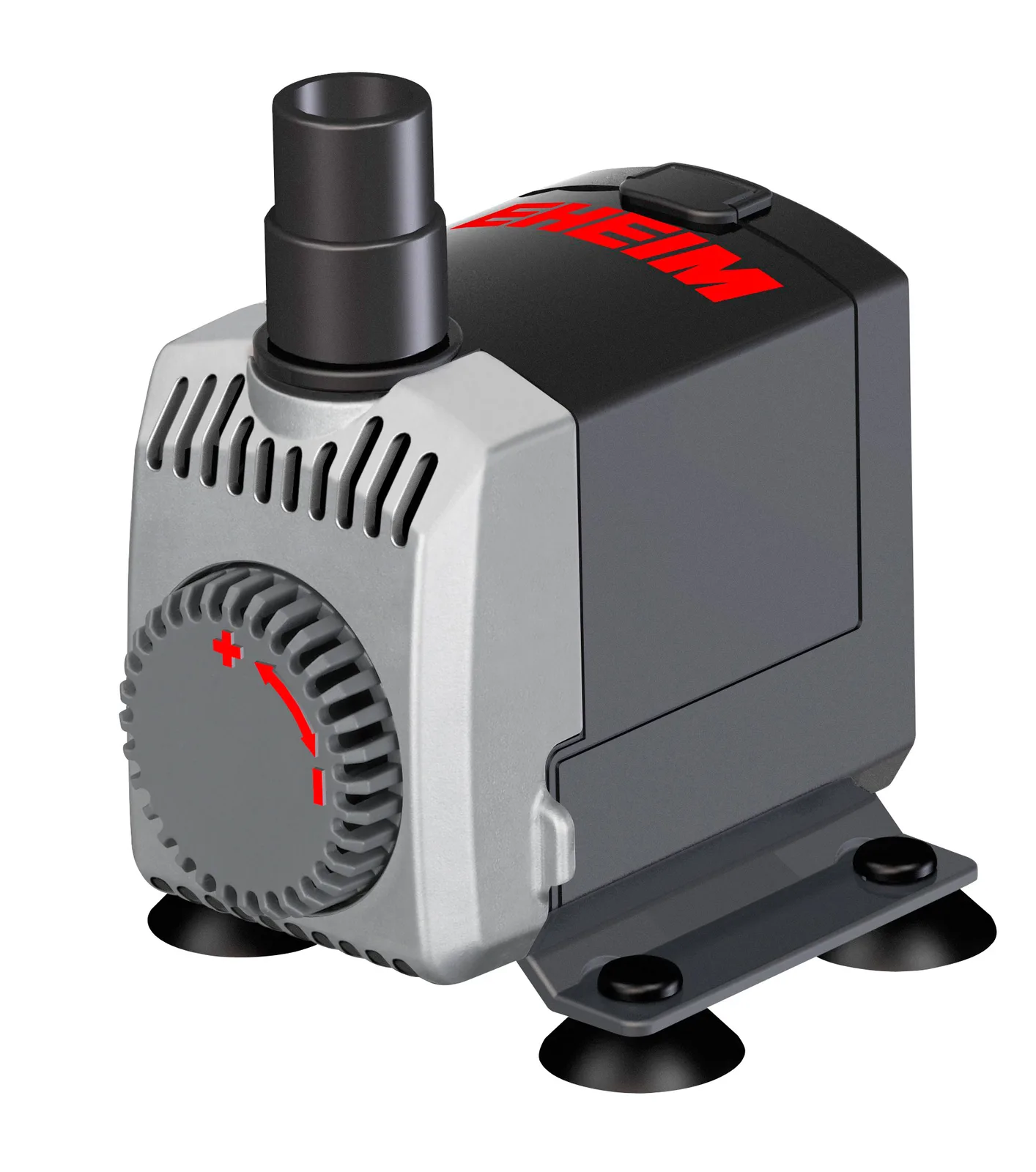

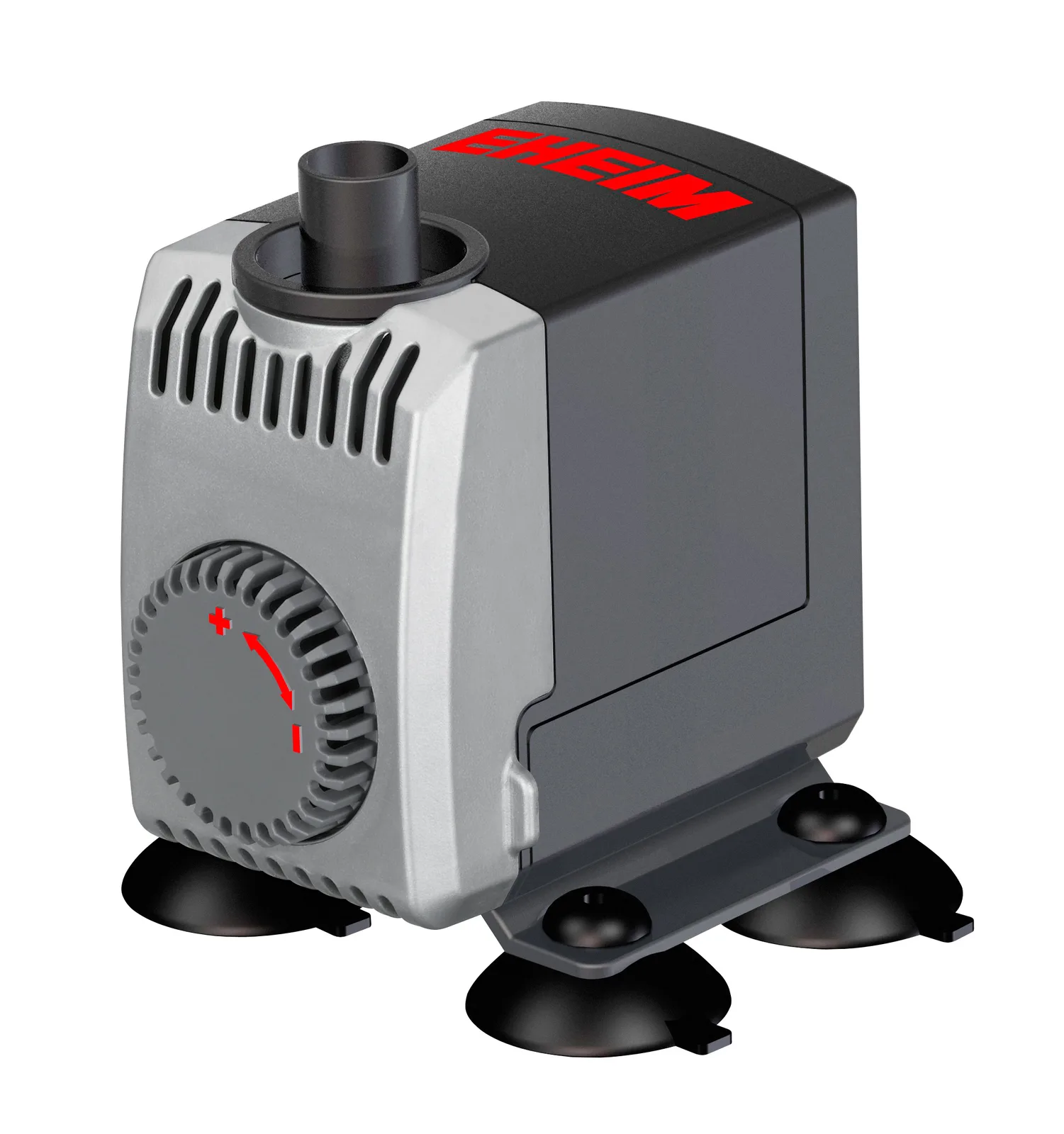

  • EHEIM compactON 600

    Choose the compactON 600 for an underwater setup when you want to turn the flow down mechanically; its headline rating is 600 L/h.418

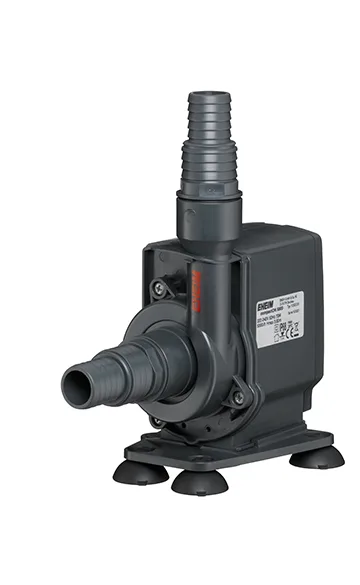

  • EHEIM compactON 2100

    Choose the compactON 2100 for external installation when you want manual flow adjustment.519

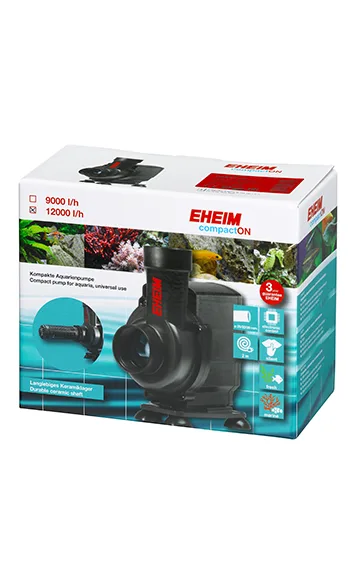

  • EHEIM compactON 12000

    Choose the compactON 12000 for external plumbing that needs its larger flow rating; its maximum head is 4.2 m at 230 V, 50 Hz.62021

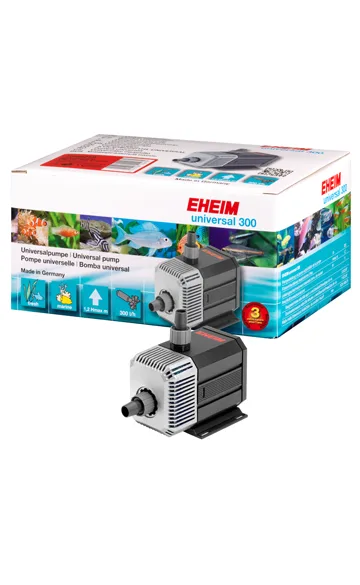

  • EHEIM universal 300

    Choose the EHEIM universal 300 for a modest return circuit with a short lift; its separate maximum ratings are 300 L/h flow and 1.2 m head, and it supports submerged or external installation.722

  • SICCE Syncra SDC 7.0

    Choose the Syncra SDC 7.0 when you need its higher 1,900 GPH maximum rating with adjustable output. It supports submerged or external installation and includes controller-adjusted flow.123

  • SICCE Syncra SDC 9.0

    Choose the Syncra SDC 9.0 when your return circuit needs its 2,500 GPH maximum class with adjustable output. It supports submerged or external installation and includes controller-adjusted flow. Check the flow curve before ordering.124

  • Supreme Aquarium Aqua-Mag Model 3 120 V / 60 Hz Return Pump

    The Aqua-Mag Model 3 offers the smaller 350 GPH nominal class with a 35 W maximum rating and the same submerged or external mounting choice.1025

  • Supreme Aquarium Aqua-Mag Model 5 120 V / 60 Hz Return Pump

    Choose the Danner Aqua-Mag Model 5 for its 500 GPH nominal class and 45 W maximum rating when you need submerged or external installation. Check its flow curve at your actual lift before ordering.1026

  • Supreme Aquarium Aqua-Mag Model 7 120 V / 60 Hz Return Pump

    Choose the Aqua-Mag Model 7 when your return needs its larger 700 GPH nominal class; its maximum power rating is 70 W.1027

  • Supreme Aquarium Aqua-Mag Model 9.5

    Choose the Aqua-Mag Model 9.5 when its 950 GPH nominal class suits your return circuit. It supports submerged or external installation and has a 93 W rating. Check the flow curve at your actual lift.1028

  • Supreme Aquarium Aqua-Mag Model 12

    Choose the Aqua-Mag Model 12 when your return circuit needs its 1,200 GPH nominal class. It supports submerged or external installation and has a 110 W rating. Check the flow curve before sizing it for your plumbing.1029

  • Supreme Aquarium Aqua-Mag Model 18

    Choose the Aqua-Mag Model 18 for its 1,800 GPH nominal class when your plumbing needs more flow. It supports submerged or external installation; its power rating is 145 W.1030

  • Supreme Aquarium Aqua-Mag Model 24

    Choose the Aqua-Mag Model 24 when its 2,400 GPH nominal class suits a larger return circuit. It supports submerged or external installation and has a 237 W rating. Check the flow curve at your actual lift.1031

  • Supreme Aquarium Aqua-Mag Model 36

    Choose the Aqua-Mag Model 36 only when its 3,600 GPH nominal class and flow curve suit your larger return circuit. It supports submerged or external installation; check the body and fitting sizes before installation.10

Buying advice

  • Choose by the flow your plumbing needs at its actual lift. The headline flow and maximum head are separate limits.22
  • Check that the pump’s electrical version matches your supply before ordering.40

For turning the flow down to suit the tank

Choose manual flow adjustment when you need to reduce output for your return circuit.4 Choose the compactON 600 when the pump will sit underwater.4

For plumbing the pump in line, outside the water

Choose a pump approved for external installation when it must sit outside the water.7 Choose the EHEIM universal 300 for a small return circuit with a short lift.722

Compare the options

Products 1–24 of 28. 24 products

Filters and sorting apply to this page.

Browse all 28 models and their full specifications

Narrow your options

Flow rate (l/h)
Maximum head height (m)
Power draw (w)
Reset requirements
Compare models side by side

Models in this comparison

Every specification for these products
SpecificationSICCE Syncra SDC 6.0AquaIllumination Axis 20AquaIllumination Axis 40AquaIllumination Axis 90EHEIM compactON 300EHEIM compactON 600EHEIM compactON 1000EHEIM compactON 2100EHEIM compactON 3000EHEIM compactON 5000EHEIM compactON 9000EHEIM compactON 12000EHEIM universal 300EHEIM universal 600EHEIM universal 1005EHEIM universal 1200EHEIM universal 2400EHEIM universal 3400SICCE Syncra SDC 7.0SICCE Syncra SDC 9.0Supreme Aquarium Aqua-Mag Model 3 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 5 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 7 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 9.5
Flow rate≈5,490 l/h (1450 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)2Approx. 700.30118004 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)11Approx. 1,514.1647136 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)14Approx. 3,501.5059002 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)16300 l/h32600 l/h181,000 l/h332,100 l/h343,000 l/h355,000 l/h369,000 l/h (Environment: 230 V / 50 Hz)3712,000 l/h20300 l/h22600 l/h8270 l/h381,200 l/h72,400 l/h73,400 l/h7≈7,190 l/h (1900 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)23≈9,460 l/h (2500 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)24≈1,320 l/h (350 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈1,890 l/h (500 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈2,650 l/h (700 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈3,600 l/h (950 Gallons Per Hour) (Configuration: US 120 V / 60 Hz model; headline GPH class. Delivered flow decreases with plumbing lift and restrictions.)10
Maximum head height————0.6 m321 m181.4 m392.4 m402.7 m413.6 m (Configuration: 50 Hz)423.70 m (Environment: 230 V / 50 Hz)374.20 m (Environment: 230 V / 50 Hz)211.2 m22———3.7 m (Environment: 230 V)433.60 m (Environment: 230 V / 50 Hz)44——————
Power draw————7 w327 w1815 w3938 w4055 w4170 w (Configuration: 50 Hz)4280.00 w (Environment: 230 V / 50 Hz)37110.00 w (Environment: 230 V / 50 Hz)215 w22———65 w (Environment: 230 V)4380.00 w (Environment: 230 V / 50 Hz)44——35 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2545 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2670 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2793 w (Configuration: 120 V / 60 Hz selected unit; maximum maker-listed watts, not measured consumption at your plumbing load.)28
MountingBoth (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only4Submersible only4Submersible only4Both5Both5Both6Both6Both6Both7Both8Both7Both7Both7Both9Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Both10Both10Both10Both (Configuration: Model 9.5; submerged or inline aquarium installation. Plumbing fittings must match this model.)10
Adjustable flowYes1Yes13Yes15Yes17Yes4Yes4Yes4Yes19Yes20—————————Yes1Yes1————
Motor type—DC13DC15DC17————————————————————
Hose fitting size——————16 mm45—————11 mm22———————————
Ceramic bearing———————Yes19————————————————
Width—54 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)1262 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)1274 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12————————————————————
Height—139.7 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12168.2 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12196.85 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12————————————————————

Compare features

Reset requirements

Products 1–24 of 28. 24 products

Product image unavailableSICCE Syncra SDC 6.0

SICCE Syncra SDC 6.0

Mounting
Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1
Product image unavailableAquaIllumination Axis 20

AquaIllumination Axis 20

Mounting
Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3
Product image unavailableAquaIllumination Axis 40

AquaIllumination Axis 40

Mounting
Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3
Product image unavailableAquaIllumination Axis 90

AquaIllumination Axis 90

Mounting
Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3
Product image unavailableSICCE Syncra SDC 7.0

SICCE Syncra SDC 7.0

Mounting
Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1
Product image unavailableSICCE Syncra SDC 9.0

SICCE Syncra SDC 9.0

Mounting
Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1

How they compare

SpecificationOur pickSICCE Syncra SDC 6.0AquaIllumination Axis 20AquaIllumination Axis 40AquaIllumination Axis 90EHEIM compactON 300EHEIM compactON 600EHEIM compactON 1000EHEIM compactON 2100EHEIM compactON 3000EHEIM compactON 5000EHEIM compactON 9000EHEIM compactON 12000EHEIM universal 300EHEIM universal 600EHEIM universal 1005EHEIM universal 1200EHEIM universal 2400EHEIM universal 3400SICCE Syncra SDC 7.0SICCE Syncra SDC 9.0Supreme Aquarium Aqua-Mag Model 3 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 5 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 7 120 V / 60 Hz Return PumpSupreme Aquarium Aqua-Mag Model 9.5
Buy
Flow rate≈5,490 l/h (1450 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)2Approx. 700.30118004 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)11Approx. 1,514.1647136 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)14Approx. 3,501.5059002 l/h (Configuration: Approximate maximum selected-retailer rating, consistent with the maker; delivered return flow depends on lift and plumbing.)16300 l/h32600 l/h181,000 l/h332,100 l/h343,000 l/h355,000 l/h369,000 l/h (Environment: 230 V / 50 Hz)3712,000 l/h20300 l/h22600 l/h8270 l/h381,200 l/h72,400 l/h73,400 l/h7≈7,190 l/h (1900 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)23≈9,460 l/h (2500 GPH) (Configuration: Maximum of the stated adjustable US GPH range; actual return flow depends on lift and plumbing.)24≈1,320 l/h (350 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈1,890 l/h (500 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈2,650 l/h (700 Gallons Per Hour) (Test method: Manufacturer nominal GPH class; actual return flow depends on head height and plumbing. Configuration: 120 V / 60 Hz. Pump body 5.0 in long × 3.8 in wide × 4.2 in high; 1/2 in FPT inlet and 1/2 in MPT outlet. Nominal class differs from the head-flow curve.)10≈3,600 l/h (950 Gallons Per Hour) (Configuration: US 120 V / 60 Hz model; headline GPH class. Delivered flow decreases with plumbing lift and restrictions.)10
Maximum head height————0.6 m321 m181.4 m392.4 m402.7 m413.6 m (Configuration: 50 Hz)423.70 m (Environment: 230 V / 50 Hz)374.20 m (Environment: 230 V / 50 Hz)211.2 m22———3.7 m (Environment: 230 V)433.60 m (Environment: 230 V / 50 Hz)44——————
Power draw————7 w327 w1815 w3938 w4055 w4170 w (Configuration: 50 Hz)4280.00 w (Environment: 230 V / 50 Hz)37110.00 w (Environment: 230 V / 50 Hz)215 w22———65 w (Environment: 230 V)4380.00 w (Environment: 230 V / 50 Hz)44——35 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2545 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2670 w (Configuration: 120 V / 60 Hz; maximum input wattage.)2793 w (Configuration: 120 V / 60 Hz selected unit; maximum maker-listed watts, not measured consumption at your plumbing load.)28
MountingBoth (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only (Configuration: AX020 / AX040 / AX090 shared quick-start guide prescribes installation in the aquarium return chamber. This records prescribed submerged setup.)3Submersible only4Submersible only4Submersible only4Both5Both5Both6Both6Both6Both7Both8Both7Both7Both7Both9Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Both (Configuration: US Syncra SDC unit with included controller and power supply; wet or external mounting supported.)1Both10Both10Both10Both (Configuration: Model 9.5; submerged or inline aquarium installation. Plumbing fittings must match this model.)10
Adjustable flowYes1Yes13Yes15Yes17Yes4Yes4Yes4Yes19Yes20—————————Yes1Yes1————
Motor type—DC13DC15DC17————————————————————
Hose fitting size——————16 mm45—————11 mm22———————————
Ceramic bearing———————Yes19————————————————
Width—54 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)1262 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)1274 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12————————————————————
Height—139.7 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12168.2 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12196.85 mm (Configuration: Pump body dimensions; leave space for the attached hose and fittings.)12————————————————————
